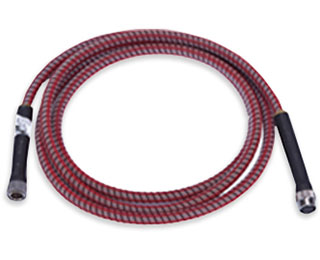

Sensing Cables: TT5000 TraceTek TT5000 sensing cable detects the presence of liquid hydrocarbon fuels at any point along its length, yet does not react to the presence of water. Installed with a TraceTek alarm and locating module, the cable senses the liquid, triggers an alarm, and pinpoints the location of the leak within one meter.
Leak Detection System Module: TTSIM-1 The TTSIM-1 Sensor Interface Module monitors up to 5000 feet (1500 m) of TraceTek sensing cable. When liquid is detected, the TTSIM-1 unit communicates either with a TTDM-128 Master Module or directly to a Programmable Logic Controller (PLC), building management system, or other host system using standard MODBUS, Opto-22, or […]
Leak Detection System Module: TTSIM-1A The TTSIM-1A Sensor Interface Module monitors up to 150 meters (500 feet) of TraceTek sensing cable. When liquid is detected, the TTSIM-1A unit indicates the leak with an LED, and switches a relay to provide local voltage-free contact closure. The TTSIM-1A can also communicate to a host monitoring system such […]
Leak Detection System Module: TTSIM-2 The TraceTek TTSIM-2 is a sensor interface module with capacity to monitor up to 150m (500ft) of sensor cable. Leak alarm signaling is via 3-digit leak location on built-in LCD display, LED, dry contact relay, and serial data to a PLC or host system using standard protocols. It can be […]
Touch Screen Panel: TT-TS12 The TraceTek TT-TS12 Touch Screen Panel provides a graphic user interface to manage and display information from a network of up to 250 external leak detection system circuits. With interactive and dynamic leak location maps and displays, the leak location can be displayed on the floor plan, piping layout or photo […]
Leak Detection System Module: TTDM-128 The TTDM-128 module directly monitors up to 1500m (5000ft) of sensor cable and a network of up to 128 remote TraceTek modules. The remote modules may be a combination of sensor interface modules (TTSIM), relay modules (TT-NRM) or additional TTDM-128 modules. With its networking capability, the TTDM-128 provides tremendous flexibility […]
Leak Detection System Module: TTC01 The TraceTek TTC-1 module offers a low cost option for liquid leak detection. It is designed for use with any TraceTek sensing cable, and can be integrated into a variety of monitoring systems. The TTC-1 module includes three sets of relay contacts which can be used for remote annunciation and […]
Leak Detection System Probe: TT-FLAT PROBE The TT-FLAT PROBE is a special purpose probe designed to detect water leaks in specific locations such as low spots or drip trays. It is designed to be integrated as a part of a larger leak detection system, monitored by controllers such as the TT-SIM module.
Fast Fuel Sensor: TT-FFS The TraceTek Fast Fuel Sensor (FFS) is a probe designed to detect hydrocarbon fuel floating on water, spreading on a flat surface or collecting in a sump. Reaction time for the probe is typically a few seconds for light or middle weight fuels such as gasoline, jet fuel, and diesel. It […]

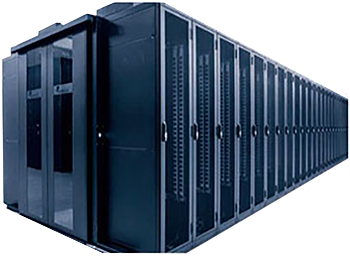

Containment System Containment systems in data centers improve cooling efficiency by directing airflow more effectively, reducing energy consumption and maintaining optimal temperatures for equipment. Our containment solutions also offer fire suppression and safety functions in the event of an emergency.
